UAMT90 3 Phase Electric Motor for Glass straight Line Machine ISO9001

  • 1
  • 2
  • 3

Brand Name : CDQC

Model Number : UAMT

Certification : CE，CCC

Place of Origin : Shanghai

MOQ : 10set

Price : Negotiate

Payment Terms : T/T , L/C Negotiates

Supply Ability : 8000sets per month

Delivery Time : 15-20 work days

Packaging Details : waterproof film & CDQC carton

Brand : CDQC

Model : UAMT Granding Motor

Rated Power : 2.2kW

Referenced Speed : 2850 rpm/min

Color : Blue. Gray. Others

Rated Voltage : 380V

Function : Glass

Speed : Constant

High Lights : The most popular motor in our company

Contact Now

Three Phase Electric Motor for Glass edging Line Machine

INTERDUCTION

UAMT90 series products are one of the star products in our company, It's suitable for the glass deep processing industry

of the process edge grinding, punching and chamfering. well-known bearings, 100% products passed dynamic balance detection,

makes our motor more reliable.

Machine features

  • Mature technology and public praise.
  • The motor coil is dipped in vacuum environment,
  • The order quantity of motor can be specially customized.
  • New technology of vacuum dip paints.
  • Class F insulation, longer lifespan.

Characteristics

  • Rated voltage:380V~420V
  • Rotational speed:2840r/min
  • Protection level: IP54
  • Insulation Class:F
  • Working Mode:S1
  • motor vibration <0.5mm/s
  • Temperature rise <60K
  • Shaft extension radial movement≤0.01mm
  • Shaft extension axial movement≤0.02mm

Drawings

UAMT90 3 Phase Electric Motor for Glass straight Line Machine ISO9001

Thase Phase UAMT Series motor(2P) Technical Specification

Three Phase UAMT90 Series (2P) Specification

Model

Rated Power

Kw

Rated Voltage

V

Rate Frequency

HZ

Rated Current

A

Rated Torch

N.m

Rated Speed

rpm

Efficiency

η
UAMT90T-2P 1.75 380 70 3.7 4.1 4060 83.0%
UAMT90T-2P 2.2 380 50 4.6 7.4 2820 79.5%
UAMT90T-2P 2.2 380 60 4.6 6.0 3450 83.6%
UAMT90T-2P 2.2 380 70 4.6 5.2 4020 83.3%
UAMT90T-2P 3.0 380 50 6.2 10.0 2860 83.0%
UAMT90T-2P 3.0 380 60 6.1 8.3 3470 84.8%
UAMT90T-2P 3.0 380 70 6.2 7.1 4040 84.5%
UAMT90T-2P 4.0 380 60 8.1 11.0 3470 85.3%
UAMT90T-2P 4.0 380 70 8.1 9.4 4050 85.4%

Notice:Grinding motor shaft direction should be confirmed with the manager. Be sure to follow the special instructions when installing.

Motot Display

UAMT90 3 Phase Electric Motor for Glass straight Line Machine ISO9001

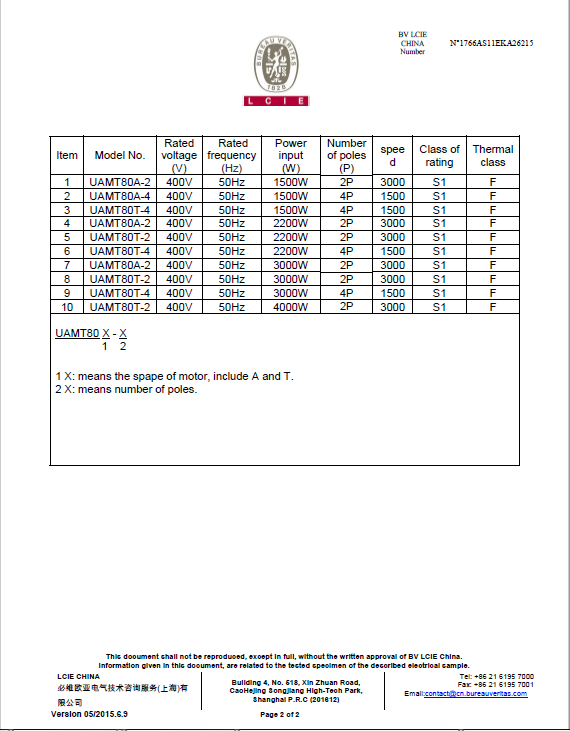

CE Certificates and Appendix

UAMT90 3 Phase Electric Motor for Glass straight Line Machine ISO9001

UAMT90 3 Phase Electric Motor for Glass straight Line Machine ISO9001

Company Profile

UAMT90 3 Phase Electric Motor for Glass straight Line Machine ISO9001

SHANGHAI CDQC ELECTRIC CO., LTD specializes in the research and development, manufacturing, sales and service of

various types of motors, covering an area of 20,000 square meters and having nearly 200 formal staff. We have a professional

research and development team. They are constantly committed to the development and innovation of motor technology and

our staff accepting serious training can use advanced motor testing platform and other professional testing equipment so

that the quality of products have greatly improved. We have to ensure to provide customers with the highest quality and the most

credible motor for their machine. At present, CDQC has developed into a new energy transmission base integrating materials,

industry and trade.
